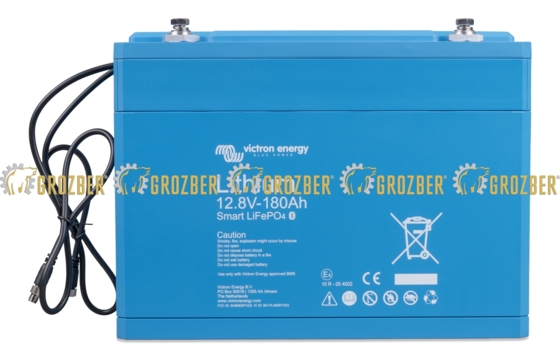

Литиевый аккумулятор Smart 12,8 В & 25,6 B Victron Energy арт. BAT512118610

Назва характеристики

Величина

automotive

ECE R10-6

batteryCapacityNominal

180 Ah

batteryTerminals

M8 threaded inserts

batteryVoltageNominal

12.8 V

batteryVoltageNominalBucket

12

bluetooth

Yes

bms

Male and female cable with M8 circular connector, length 50cm

capacityLoss

1 %

chemistry

Lithium Iron Phosphate (LiFePO4 or LFP)

colour

Blue (RAL 5012)

communicationPort

Bluetooth

cycleDesignLife50

5,000 cycles

cycleDesignLife70

3,000 cycles

cycleDesignLife80

2,500 cycles

depth

152 mm

efficiency

92 %

eMC

EN-IEC 61000-6-3,EN 55014-1

endDischargeVoltage

11.2 V

energyLoss

1 %

floatChargeVoltage

13.5 V

height

237 mm

internalResistance

0.9 m?

maxBatteryPerBms

20 (102kWh per BMS) (Up to 5 BMS-es can be paralleled)

maxContinuousDischargeCurrent

360 A

maxHumidity

95 %

maxStorageTime

1 y

mountingOrientation

The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down

nominalCapacity0

150 Ah

nominalCapacity20

90 Ah

nominalEnergy

2,304 Wh

operatingTempRangeCharge

operatingTempRangeDischarge

protectionCategory

IP22

recDischargeCurrent

180 A

recomMaxChargeCurrent

90 A

requiresExternalBMS

1

safetyBattery

EN-IEC 60335-1,IEC 61427-1,IEC 62368-1

safetyCells

UL 1973,IEC 62619,UL 9540A

storageTempRange

weight

18 kg

width

321 mm
