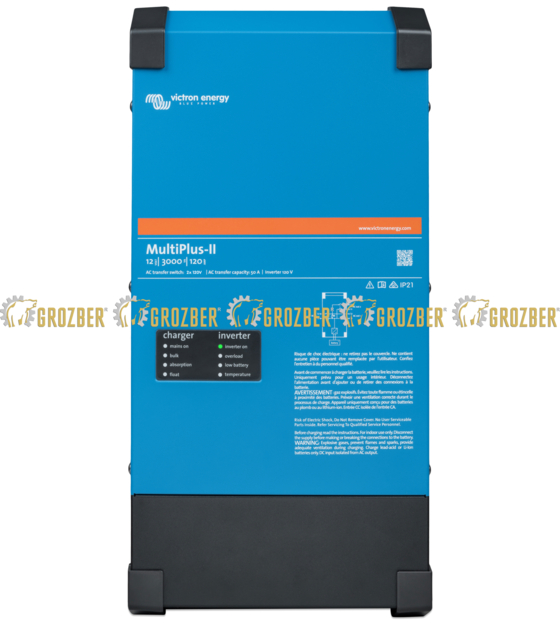

MultiPlus-II 2x 120V Victron Energy sku PMP122305100
Characteristics:
Code: PMP122305100
Manufacturer: Victron Energy
Reviews: 0 Leave a review
Product quality: Original goods
Product condition: New
Category: Inverter/chargers
Delivery terms
GROZBER Logistics or Third Party Delivery Services
Every day 24/7, orders are sent before 19:30 on weekdays, on Saturday - until 17:00. The shipping price varies depending on the weight, the set price of the delivered product and the rates of the delivery service.
Pickup from GROZBER warehouses
Scheduled transport
Every day 24/7, orders are sent before 19:30 on weekdays, on Saturday - until 17:00. The shipping price varies depending on the weight, the set price of the delivered product and the rates of the delivery service.
Pickup from GROZBER warehouses
- • Warehouse store in Kyiv, Academician Glushkov Ave, 1
- • Warehouse store in Bila Tserkva, st. Ivan Kozhedub, 359
- • Warehouse store in Nizhyn, st. Cosmonauts, 25
Scheduled transport
Payment
- • C.O.D
- • Cashless payment with VAT to the company's bank account
- • Cashless payment on a bank card of an individual
- • Cash in our office
Return / exchange conditions
Return of goods is carried out in accordance with the legislation of Ukraine.
| Batch number | Name | Manufacturer | Price | Amount | Availability | Buy |
|---|---|---|---|---|---|---|
|
Position you are looking for
|
||||||
| The consignment #1 |
MultiPlus-II 2x 120V
|
Victron Energy |
38061.40
грн
|
из 10
|
On order | |
Description:
The MultiPlus-II 2x 120V is the perfect one-box mobile solution for standard North American 50A 120/240VAC split-phase applications. Whether it is supplied from shore power or a generator, the MultiPlus-II 2x120V can accept and passthrough both lines of a 120/240V supply, with the capability to utilize the full 50A for charging and AC loads. When connecting to a single phase 120V supply, the L1 input of the MultiPlus-II 2x120V will accept incoming power for charging and passthrough, while combining the L1 and L2 outputs for single-phase 120V on each line.
The MultiPlus switches to inverter operation when no AC source is available. The inverter output is also 120V single phase. In inverter mode, the MultiPlus-II 2x120V internally connects both lines L1 and L2 together to provide 120VAC to loads on either output. Therefore, in all connection circumstances, both sides of a distribution panel will be supplied with 120V. However, 240VAC is only available when the MultiPlus is supplied by a split phase 120/240VAC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.
The MultiPlus-II 2x 120V has all of the expected features of our versatile inverter/charger range, including PowerControl, PowerAssist, Input Current Limit, two AC outputs, as well as parallel and 3ph configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies.
Назва характеристики | Величина |
aCConnectionTerminalType | |
aCInputFrequencyRange | [45, 65] Hz |
aCInputVoltageRangeSingle | [90, 140] VAC |
aCInputVoltageRangeSplit | [180, 280] VAC |
aCOutputFrequency | 60 Hz |
aCOutputVoltage | 120 VAC |
AuxiliaryOutput | Так |
batteryConnectionTerminalType | M8 bolts (two for positive and two for negative connection) |
batteryVoltageNominal | 12 V |
chargeAlgorithm | Adaptive, 4-stage |
chargeVoltageAbsorption | 14.4 VDC |
chargeVoltageFloat | 13.8 VDC |
chargeVoltageStorage | 13.2 VDC |
colour | Blue (RAL 5012) |
communicationPort | VE.Bus |
communicationPortGeneral | Так |
computerProgramming | Так |
contPowerVA25 | 3,000 VA |
contPowerW25 | 2,400 W |
contPowerW40 | 2,200 W |
contPowerW65 | 1,700 W |
dCInputVoltageRange | [9.5, 17] VDC |
depth | 148 mm |
emissionImmunity | EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
fanAssistCooling | Так |
height | 578 mm |
material | Steel |
maxAcInputCurrent | 50 A |
maxAppFeedinPower | 2,500 VA |
maxEfficiency | 93 % |
maxHumidity | 95 % |
maximumBatteryChargeCurrent | 120 A |
numberAcInputs | 1 |
operatingTempRange | |
parallelOperation | Ні |
peakPowerRating | 5,500 W |
powerAssist | Так |
powerControl | Так |
programmableRelay | AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
protectionCategory | IP22 |
protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
relayTerminal | Screw terminal 3-pole |
remoteTerminal | On / Off |
remoteTerminalType | Screw terminal two pole |
safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
temperatureSensor | Included |
threePhaseOperation | Ні |
transferSwitchCurrentRating | 50 A |
vebusTerminalType | Two RJ45 terminals |
weight | 22 kg |
width | 275 mm |
zeroLoadPower | 15 W |
zeroLoadPowerAES | 10 W |
zeroLoadPowerSearch | 4 W |
