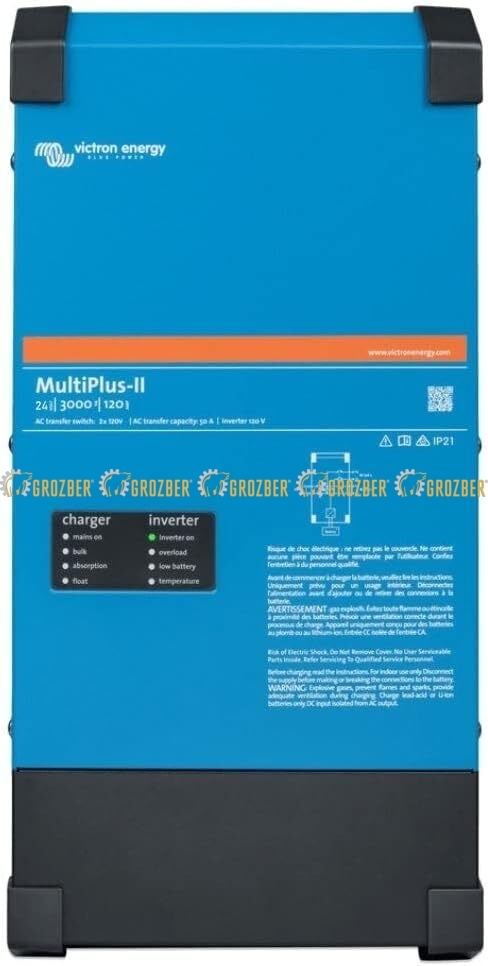

MultiPlus-II 2x 120V Victron Energy sku PMP242305130

Name: MultiPlus-II 2x 120V
Brand: Victron Energy
SKU: PMP242305130
Availability: InStock

MultiPlus-II 2x 120V Victron Energy sku PMP242305130

Characteristics:

Code: PMP242305130

Manufacturer: Victron Energy

Reviews: 0 Leave a review

Product quality: Original goods

Product condition: New

Category: Inverter/chargers

Delivery terms

GROZBER Logistics or Third Party Delivery Services
Every day 24/7, orders are sent before 19:30 on weekdays, on Saturday - until 17:00. The shipping price varies depending on the weight, the set price of the delivered product and the rates of the delivery service.

Pickup from GROZBER warehouses

• Warehouse store in Kyiv, Academician Glushkov Ave, 1
• Warehouse store in Bila Tserkva, st. Ivan Kozhedub, 359
• Warehouse store in Nizhyn, st. Cosmonauts, 25

Scheduled transport

Payment

• C.O.D
• Cashless payment with VAT to the company's bank account
• Cashless payment on a bank card of an individual
• Cash in our office

Return / exchange conditions

Return of goods is carried out in accordance with the legislation of Ukraine.

Batch number	Name	Manufacturer	Price	Amount	Availability	Buy
Position you are looking for
The consignment #1	MultiPlus-II 2x 120V	Victron Energy				Check availability with the manager

Description:

The MultiPlus-II 2x 120V is the perfect one-box mobile solution for standard North American 50A 120/240VAC split-phase applications. Whether it is supplied from shore power or a generator, the MultiPlus-II 2x120V can accept and passthrough both lines of a 120/240V supply, with the capability to utilize the full 50A for charging and AC loads. When connecting to a single phase 120V supply, the L1 input of the MultiPlus-II 2x120V will accept incoming power for charging and passthrough, while combining the L1 and L2 outputs for single-phase 120V on each line.

The MultiPlus switches to inverter operation when no AC source is available. The inverter output is also 120V single phase. In inverter mode, the MultiPlus-II 2x120V internally connects both lines L1 and L2 together to provide 120VAC to loads on either output. Therefore, in all connection circumstances, both sides of a distribution panel will be supplied with 120V. However, 240VAC is only available when the MultiPlus is supplied by a split phase 120/240VAC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.

The MultiPlus-II 2x 120V has all of the expected features of our versatile inverter/charger range, including PowerControl, PowerAssist, Input Current Limit, two AC outputs, as well as parallel and 3ph configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies.

Назва характеристики	Величина
aCConnectionTerminalType
aCInputFrequencyRange	[45, 65] Hz
aCInputVoltageRangeSingle	[90, 140] VAC
aCInputVoltageRangeSplit	[180, 280] VAC
aCOutputFrequency	60 Hz
aCOutputVoltage	120 VAC
AuxiliaryOutput	Так
batteryConnectionTerminalType	M8 bolts (two for positive and two for negative connection)
batteryVoltageNominal	24 V
chargeAlgorithm	Adaptive, 4-stage
chargeVoltageAbsorption	28.8 VDC
chargeVoltageFloat	27.6 VDC
chargeVoltageStorage	26.4 VDC
colour	Blue (RAL 5012)
communicationPort	VE.Bus
communicationPortGeneral	Так
computerProgramming	Так
contPowerVA25	3,000 VA
contPowerW25	2,400 W
contPowerW40	2,200 W
contPowerW65	1,700 W
dCInputVoltageRange	[19, 33] VDC
depth	148 mm
emissionImmunity	EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
fanAssistCooling	Так
height	578 mm
material	Steel
maxAcInputCurrent	50 A
maxAppFeedinPower	2,500 VA
maxEfficiency	94 %
maxHumidity	95 %
maximumBatteryChargeCurrent	70 A
numberAcInputs	1
operatingTempRange
peakPowerRating	5,500 W
powerControlAndAssist	Так
programmableRelay	AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
protectionCategory	IP22
protections	Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
relayTerminal	Screw terminal 3-pole
remoteTerminal	On / Off
remoteTerminalType	Screw terminal two pole
safety	EN-IEC 60335-1,EN-IEC 60335-2-29
temperatureSensor	Included
transferSwitchCurrentRating	50 A
vebusTerminalType	Two RJ45 terminals
weight	22 kg
width	275 mm
zeroLoadPower	11 W
zeroLoadPowerAES	8 W
zeroLoadPowerSearch	4 W
