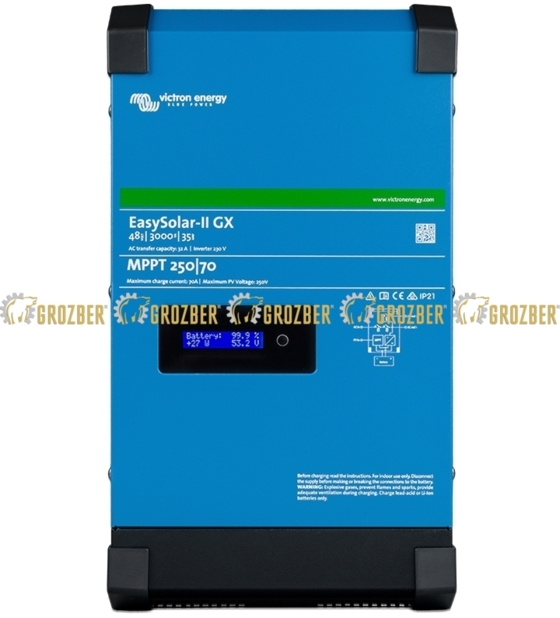

EasySolar-II GX Victron Energy sku PMP482657010

Назва характеристики

Величина

aCConnectionTerminalType

aCInputFrequencyRange

[45, 65] Hz

aCInputVoltageRange

[187, 265] VAC

aCOutputFrequency

50 Hz

aCOutputVoltage

230 VAC

antiIslandingStandard

See our website

auxAcCurrent

32 A

AuxiliaryOutput

Так

batteryConnectionTerminalType

M8 bolts

batteryVoltageNominal

48 V

chargeAlgorithm

Adaptive, 4-stage

chargeAlgorithmSolar

Adaptive, 4-stage

chargeVoltageAbsorption

57.6 VDC

chargeVoltageAbsorptionSolar

57.6 VDC

chargeVoltageFloat

55.2 VDC

chargeVoltageFloatSolar

55.2 VDC

chargeVoltageStorage

52.8 VDC

colour

Blue (RAL 5012)

communicationPort

VE.Direct,WiFi,VE.Can,Ethernet

computerProgramming

Так

contPowerW25

6,000 W

contPowerW40

5,700 W

dCInputVoltageRange

[38, 60] VDC

depth

270 mm

emissionImmunity

EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

externalAcCurrentSensor

100A (optional)

fanAssistCooling

Так

height

670 mm

includesMPPT

Так

material

Steel

maxAcInputCurrent

50 A

maxAltitude

2,000 m

maxEfficiency

96 %

maxHumidity

95 %

maxiEfficiencySolarCharger

99 %

maximumBatteryChargeCurrent

55 A

maxOutputCurrentSolar

100 A

maxPvOpenCircuitVoltage

250 V

maxPvPower

5,800 W

numberAcInputs

1

numberAcOutputs

2

operatingTempRange

peakPowerRating

11,000 W

powerAssist

Так

powerControl

Так

programmableRelay

AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

protectionCategory

IP21

protections

Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

pVConnectionTerminalType

M6 bolts

relayTerminal

Screw terminal 3-pole

remoteTerminal

On / Off

remoteTerminalType

Screw terminal two pole

safety

EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2

selfConsumption

20 mA

SolarChargerModel

MPPT 250/100-Tr

temperatureSensor

Included

transferSwitchCurrentRating

50 A

vebusTerminalType

Two RJ45 terminals

weight

40 kg

width

320 mm

zeroLoadPower

25 W

zeroLoadPowerAES

14 W

zeroLoadPowerSearch

7 W
