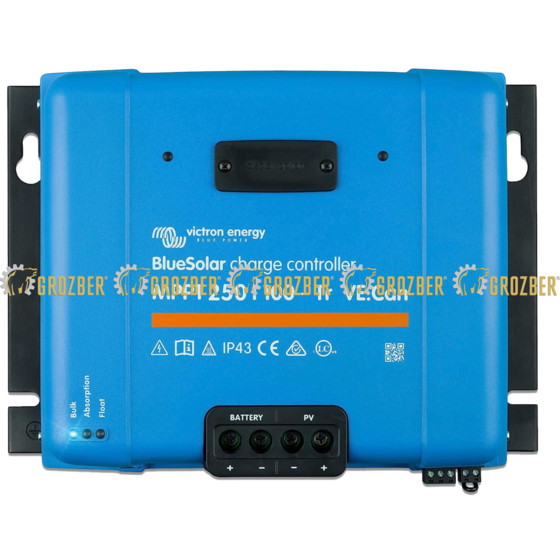

BlueSolar MPPT 150/35 up to 250/100 Victron Energy sku SCC125110441

Назва характеристики

Величина

batteryConnectionTerminalType

batteryVoltageAutoSelect

12V / 24V / 48V Auto Select (software tool needed to select 36V)

chargeAlgorithm

Multi-stage adaptive (adjustable)

chargeVoltageAbsorption

14.4V / 28.8V / 57.6V (adjustable)

chargeVoltageFloat

13.8V / 27.6V / 55.2V (adjustable)

colour

Blue (RAL 5012)

dataCommunication

VE.Direct,VE.Can

dataRetentionPeriod

46 d

depth

103 mm

environmentalCondition

Indoor, unconditioned

height

216 mm

loadConnectionTerminalType

lowVoltageLoadDisconnect

11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm

lowVoltageLoadReconnect

13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm

material

maxAltitude

5,000

maxEfficiency

99 %

maxHumidity

95 %

maxPVOpenCircuitVoltage

250 V

maxPVShortCircuitCurrent

70 A

nominalPVpower12V

1,450 W

nominalPVpower24V

2,900 W

nominalPVpower36V

4,350 W

nominalPVpower48V

5,800 W

numberOfSyncParallelOperatingUnits

25

numberOfTrackers

1

operatingTempRange

pollutionDegree

PD3

programmableRelay

DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC

protectionCategory

IP22 (connection area),IP43 (electronic components)

protections

Output short-circuit,Excessive temperature,PV reverse polarity

pVConnectionTerminalType

ratedChargeCurrent

100 A

relayTerminalConnection1

Screw terminal 3-pole

remoteOnOffTerminal

Так

remoteOnOffTerminalConnection

Screw terminal two pole

safety

CSA C22.2,EN-IEC 62109-1,UL 1741

selfConsumption

Less than 35mA @ 12V / 20mA @ 48V

startUpPVDCVoltage

The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V

temperatureCompensation12V

temperatureCompensation24V

temperatureCompensation48V

temperatureSensor

weight

4.5 kg

width

295 mm
