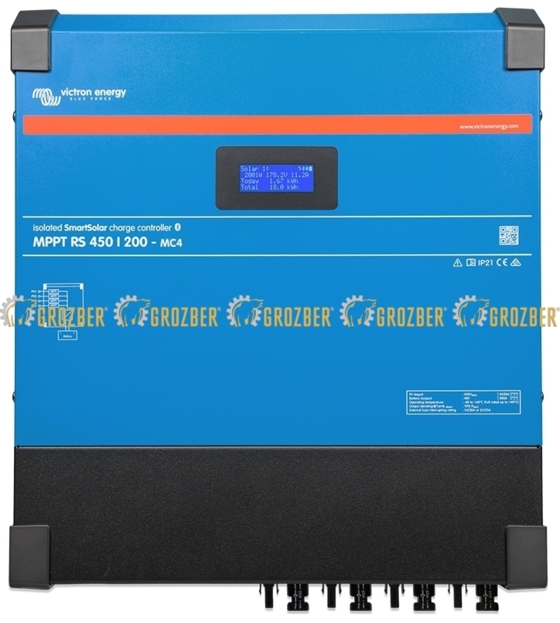

SmartSolar MPPT RS Victron Energy sku SCC145110510

Name: SmartSolar MPPT RS
Brand: Victron Energy
SKU: SCC145110510
Availability: InStock

SmartSolar MPPT RS Victron Energy sku SCC145110510

Characteristics:

Code: SCC145110510

Manufacturer: Victron Energy

Reviews: 0 Leave a review

Product quality: Original goods

Product condition: New

Category: Solar charge controllers

Delivery terms

GROZBER Logistics or Third Party Delivery Services
Every day 24/7, orders are sent before 19:30 on weekdays, on Saturday - until 17:00. The shipping price varies depending on the weight, the set price of the delivered product and the rates of the delivery service.

Pickup from GROZBER warehouses

• Warehouse store in Kyiv, Academician Glushkov Ave, 1
• Warehouse store in Bila Tserkva, st. Ivan Kozhedub, 359
• Warehouse store in Nizhyn, st. Cosmonauts, 25

Scheduled transport

Payment

• C.O.D
• Cashless payment with VAT to the company's bank account
• Cashless payment on a bank card of an individual
• Cash in our office

Return / exchange conditions

Return of goods is carried out in accordance with the legislation of Ukraine.

Batch number	Name	Manufacturer	Price	Amount	Availability	Buy
Position you are looking for
The consignment #1	SmartSolar MPPT RS	Victron Energy				Check availability with the manager

Description:

The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.

Available in a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.

Назва характеристики	Величина
adjustableChargeVoltageRange	[36, 60] V
batteryConnectionTerminalType	M8 bolts
batteryVoltageAutoSelect	48V
bluetooth	Так
bluetoothFrequencyRange	[2,402, 2,480] Hz
bluetoothPower	4 dBmW
chargeAlgorithm	Multi-stage adaptive (adjustable)
chargeVoltageAbsorption	57.6V (adjustable)
chargeVoltageFloat	55.2V (adjustable)
colour	Blue (RAL 5012)
dataCommunication	VE.Direct,VE.Can,Bluetooth
dataRetentionPeriod	30 d
depth	126 mm
height	440 mm
loadConnectionTerminalType
material	Steel
maxDCOutputChargingPowerPerTracker	4,000 W
maxDCOutputChargingPowerTrackersCombined	5,760 W
maxEfficiency	96 %
maxHumidity	95 %
maximumChargePower	5.8 kW
maxPVArrayPerTracker	7,200 Wp
maxPVOpenCircuitVoltage	450 V
maxPVOperationalInputCurrentTracker	16 A
maxPVShortCircuitCurrent	20 A
mPPTOperatingVoltageRange	[65, 450] V
numberOfGeneralPurposeAnalogue	2
numberOfSyncParallelOperatingUnits	25
numberOfTrackers	2
operatingTempRange
programmableRelay	DC rating: 4A up to 35VDC and 1A up to 70VDC
protectionCategory	IP21
protections	Output short-circuit,Excessive temperature,PV reverse polarity
pVConnectionTerminalType	MC4 male/female pair per tracker
pVIsolationFailLevel	100 k?
ratedChargeCurrent	100 A
relayTerminalConnection1
remoteOnOffTerminal	Так
remoteOnOffTerminalConnection
safety	EN-IEC 62109-1
selfConsumption	15mA
startUpPVDCVoltage	120V
temperatureSensor	Included
weight	7.9 kg
width	313 mm
