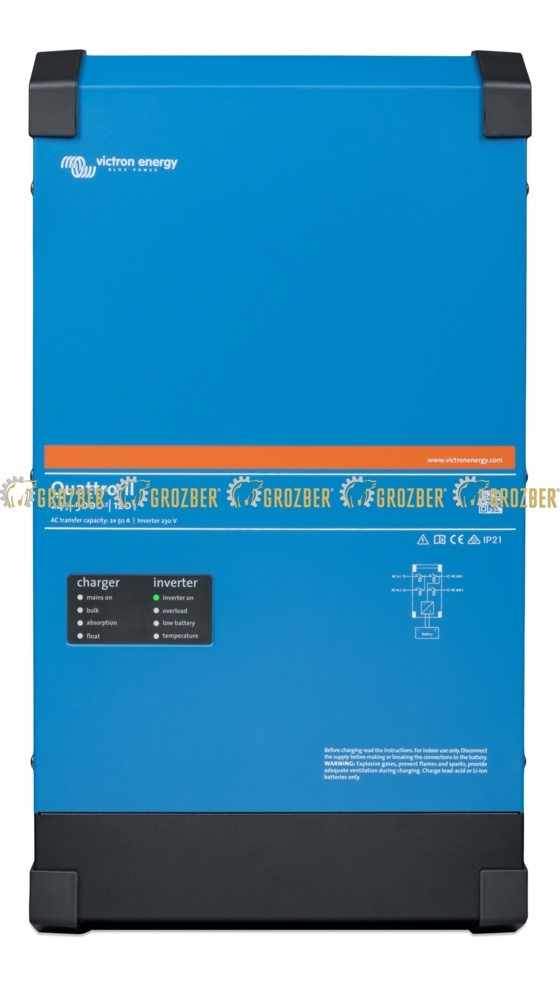

Quattro-II Victron Energy sku QUA242505010

Назва характеристики

Величина

aCConnectionTerminalType

aCInputFrequencyRange

[45, 65] Hz

aCInputVoltageRange

[187, 265] V

aCInputVoltageRange2

[187, 265] V

aCOutputFrequency

50 Hz

aCOutputVoltage

230 VAC

antiIslandingStandard

Please consult the certificates on our website

AuxiliaryOutput

Так

batteryConnectionTerminalType

M8 bolts (two for positive and two for negative connection)

batteryVoltageNominal

24 V

chargeAlgorithm

Adaptive, 4-stage

chargeVoltageAbsorption

28.8 VDC

chargeVoltageFloat

27.6 VDC

chargeVoltageStorage

26.4 VDC

colour

Blue (RAL 5012)

communicationPort

VE.Bus

communicationPortGeneral

Так

contPowerVA25

5,000 VA

contPowerW25

4,000 W

contPowerW40

3,700

contPowerW65

3,000 W

dCInputVoltageRange

[19, 33] VDC

depth

149 mm

emissionImmunity

EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

fanAssistCooling

Так

frequencySelect

height

607 mm

integratedTransferSwitch

Так

material

Steel

maxAltitude

2,000 m

maxAppFeedinPower

5,000 VA

maxEfficiency

96 %

maxFeedTroughCurrent

2x 50A

maxHumidity

95 %

maximumBatteryChargeCurrent

120 A

numberAcInputs

2

operatingTempRange

parallelOperation

Так

peakPowerRating

9,000 W

powerAssist

Так

powerControl

Так

programmableRelay

AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

protectionCategory

IP21

protections

Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

relayTerminal

Screw terminal 3-pole

remoteTerminal

On / Off

remoteTerminalType

Screw terminal two pole

safety

EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1

temperatureSensor

Included

threePhaseOperation

Так

upsStandard

Please consult the certificates on our website

vebusTerminalType

Two RJ45 terminals

weight

31 kg

width

329 mm

zeroLoadPower

18 W

zeroLoadPowerAES

12 W

zeroLoadPowerSearch

2 W
